| Brand Name : | GJX |
| Model Number : | GJX-04GPN12dBiNF |
| Certification : | SGS,ROHS,ISO9001 |
| Price : | 5.5~7.5USD |
| Payment Terms : | L/C, T/T, Western Union,Paypal |
| Supply Ability : | 5000PCS Every week |
| Delivery Time : | 3-5 days |
Proxicast 4G / LTE Cross-Polarized (MIMO) 7-10 dBi High-Gain Fixed N Female Mount Indoor Outdoor Panel Antenna
1.Specification
| Product Paramters | |||||||
| Electricial Specifications | |||||||
| Frequency Range(Mhz) | 800-2700Mhz | ||||||
| Gain(dBi) | 12dBi | ||||||
| VSWR | ≤1.5 | ||||||
| Input Impedance(Ω) | 50Ω | ||||||
| Polarization | Vertical and Horizontal | ||||||
| Maximum input power(W) | 50W | ||||||
| Input connector type | 2*2 N Female | ||||||
| Extension cable type | RG58 cable | ||||||
| Mechanical Specifications | |||||||

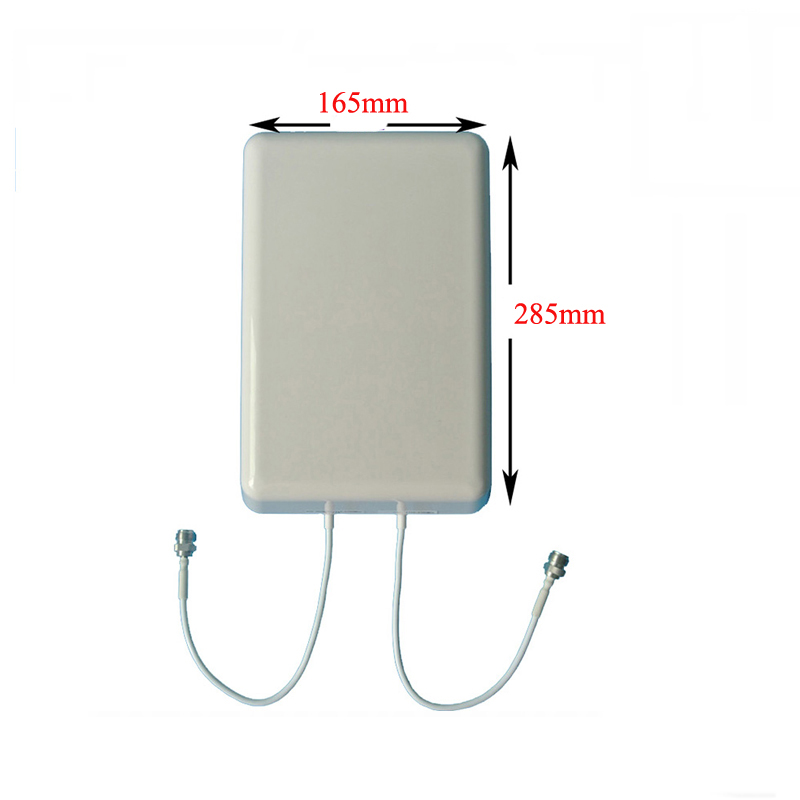

| Dimensions (mm) | 285*185*60mm | ||||||
| Operating temperature(°c) | -40～85°c | ||||||
| Cable length(meter) | 0.5 Meter | ||||||
| Radome material | ABS | ||||||
| Color | White | ||||||
2.Product Description
Features
(1). 100% brand new and high quality
(2). Easy to install
(3). Usable indoors or in fringe network areas
(4). Enhance and maintain excellent signal quality
3.Why Choose Us
4.About Us
5.Certifications
6.Our Service
7.Shipping
8.Contact Details
Shenzhen GuangJieXin Electrommunication
Communication Equipment Co., Ltd.
|
|
